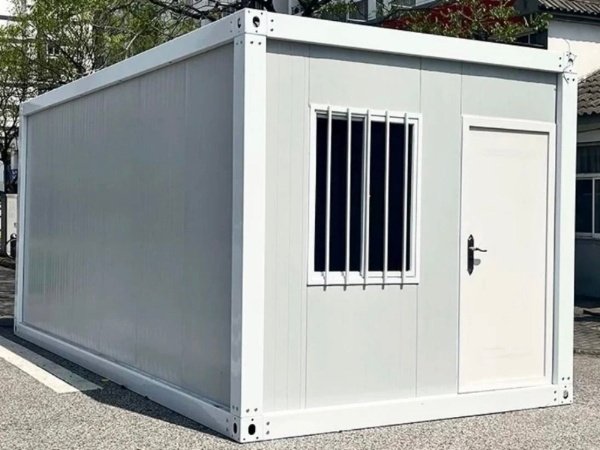

Z Type Folding Container House

What Is a Z Type Folding Container House?

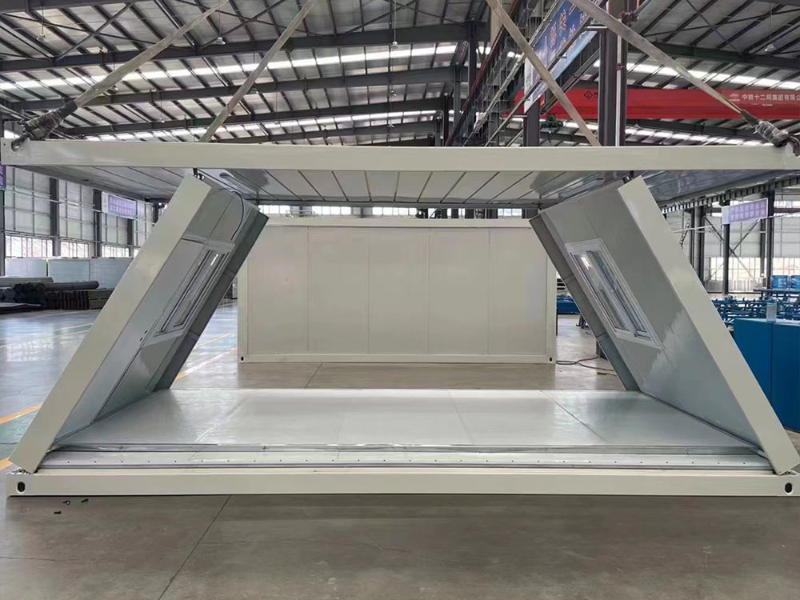

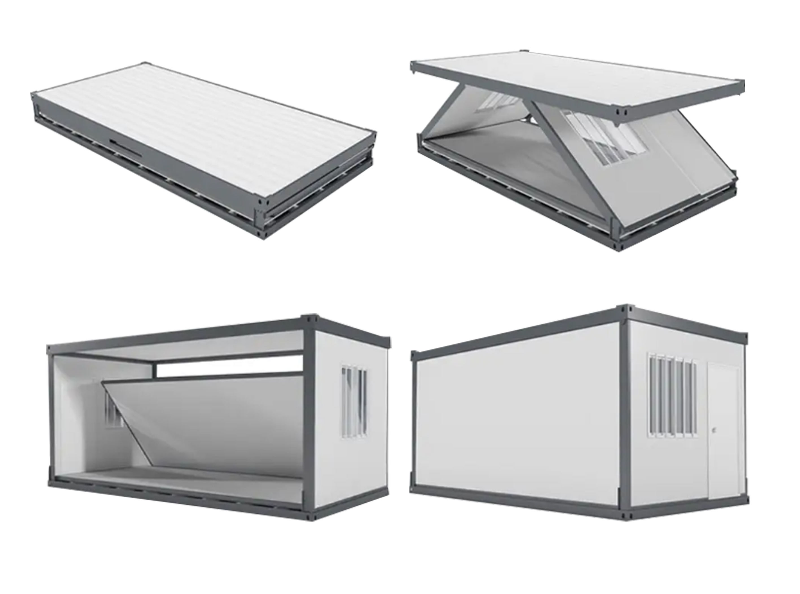

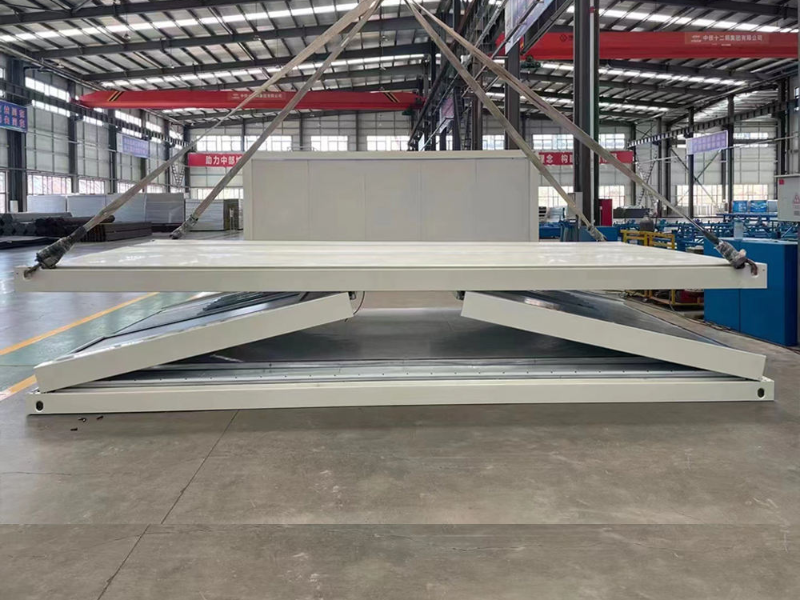

A Z Type Folding Container House is an optimized prefabricated modular building designed for easier on-site installation, improved structural support, and better sealing performance. The building is transported in a folded configuration and unfolded at the project site, reducing the amount of separate assembly work required after delivery.

Also known as a Z Fold Container House or Z Type Foldable Container House, this model uses the same material selection options as E-TOM's detachable and flat pack container houses, but features a different folding structure and optimized dimensions. Compared with earlier folding designs, it incorporates improvements to the supporting arrangement and sealing details to help simplify installation and improve the finished building's performance.

The standard size is 5900 × 2438 × 2500 mm, with approximately 8 sets loaded into one 40-foot shipping container under the standard packing arrangement. Customized dimensions and configurations are available for construction site offices, workforce accommodation, construction camps, temporary service buildings, and other modular building projects.

Learn more about container houses Send Email To E-TOM

Why Choose Our Z Type Folding Container House?

Easier On-Site Installation

The optimized folding structure is designed to make deployment more convenient at the project site. Instead of assembling all major components individually, installers unfold the prepared structure and secure the designated connections according to the installation instructions. This helps reduce on-site assembly work and supports more efficient project setup.

Improved Structural Support

Compared with earlier folding container house designs, the Z Type model features an improved support arrangement intended to provide better support when the unit is unfolded. The structure is designed for practical use at construction sites and other locations where efficient deployment is important. Final structural performance depends on the selected specifications, proper installation, and site conditions.

Better Sealing Performance

The updated design improves sealing at relevant joints and connections compared with the earlier folding model. Correctly installed sealing components help reduce the risk of water ingress and air leakage, contributing to a more comfortable interior environment. Actual performance depends on installation quality, maintenance, and local weather conditions.For more information about building insulation and air sealing, see the U.S. Department of Energy's guide to insulation and air sealing.

Flexible Material Options

The Z Type Folding Container House offers the same general material selection options as E-TOM's Detachable Container House and Flat Pack Container House. Customers can choose suitable wall panels, roofing, flooring, doors, and windows according to their project requirements, climate, and budget.Explore our prefab house materials and options to compare different material configurations.

Material Customization

Customize the materials of your Z type folding House to match different climates, project requirements, and budget levels.

Steel Structure Options：
Galvanized steel frame
Reinforced structural components
Different thickness options available
Wall Panel Options：
EPS Sandwich Panel
Rock Wool Sandwich Panel
PU Sandwich Panel
PIR Sandwich Panel
Thickness options: 50mm / 75mm / 100mm
Enhanced thermal insulation for cold regions
Heat-resistant solutions for hot climates
Fire-resistant material options available
Our engineering team can recommend the most suitable materials based on project location, climate conditions, intended use, and budget requirements, ensuring the best balance of performance, durability, and cost efficiency.

Category	Specification
Size	5900 × 2438 × 2500mm
Storey	≤ 2
Parameter	Lifespan: 20 years
	Floor live load: 2.0 kN/m²
	Roof live load: 0.5 kN/m²
	Wind load: 0.6 kN/m²
	Seismic resistance: 8 degrees
Structure	Main frame: SGH340 galvanized steel, t = 3.0mm / 3.5mm; sub-beam: Q345B galvanized steel, t = 2.0mm
Structure	Paint: powder electrostatic spraying lacquer ≥ 100 μm
Roof	Insulation: glass wool, density ≥ 14 kg/m³; ceiling: 0.5mm Zn-Al coated steel
Floor	Surface: 2.0mm PVC board; cement board: 19mm cement fiber board, density ≥ 1.3 g/cm³
	Moisture-proof: moisture-proof plastic film
	Base external plate: 0.3mm Zn-Al coated board
Wall	50mm rock wool board; double-layer board: 0.5mm Zn-Al coated steel

Get A Free Quote Today

Why Choose E-TOM?

High-quality and durable material
High Production Efficiency & Large Stock Availability
Fast & Easy Installation – No Welding Required
Thermal Insulation, Fire & Wind Resistant
Move-In Ready After Assembly
Cost-Effective, Reusable & Easy to Relocate
Highly Customizable – Sizes, Materials & Layouts
One-Stop Solution Including Furniture & Appliances

Multiple International Certifications – Our flat pack container houses have passed CE, ISO 9001, SGS, and CNAS certifications. We also provide full support for obtaining country-specific certifications required for your target market, including SONCAP, PVOC, GSO, SABER, and more. Contact us for details.

Application of Z-Type Folding Container Houses

Z-type folding container houses need no foundation, fold compact for transport, and can be deployed by two people in about 10 minutes. This makes them a good fit for temporary and semi-permanent projects of many kinds.

Construction Sites

Worker dormitories, site offices and storage rooms. The units can be relocated as the project moves, so one set of buildings can serve several sites.

Emergency Relief

Temporary housing, medical points and command centers after earthquakes or floods. Rapid deployment gets shelter in place when time matters most.

Tourism and Camping

Guesthouses, luxury campgrounds and eco-farm cabins. The units fold for storage during the off-season.

Military and Field Use

Field training bases, peacekeeping camps and forward command posts, where high mobility is essential.

Urban Commerce

Temporary sales offices, milk tea shops, security booths and park service stations. Because no foundation is needed, the ground is not damaged.

Not sure whether a Z-type unit is the right fit? If you need stacking or a longer service life, compare it with our flat pack container house or foldable container house. For large worker camps, our K type prefab house is usually more economical per square meter. If you are weighing budget against quality, our guide to new vs used container houses and the real cost of a container house will help you compare quotes fairly. Disaster-relief and emergency buyers should also check import rules early, see our prefab house tariff guide. For humanitarian shelter standards, the Sphere Handbook is a useful reference, and you can contact us with your project details for a recommendation.
