What Is a K Type Prefab House?

A K type prefab house is an environmentally friendly, economical modular building system that takes 1K (1820mm) as its standard dimensional module. Also known as a slope-top prefabricated house, the K type prefab house uses a light steel skeleton system combined with rock wool or EPS sandwich panels for walls and roof, delivering superior insulation, fire resistance, and weather protection.
Unlike conventional construction, every component of the K type prefab house is factory-manufactured and arrives on site ready for fast bolt assembly — no welding required. A team of 6 workers can assemble 20-30㎡ per person per day, making it one of the fastest temporary building solutions available today.

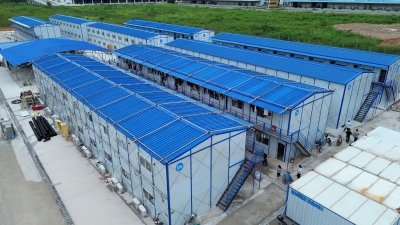

Available in single, double, and three-story configurations, E-TOM K type prefab houses can be freely combined horizontally and vertically to create offices, dormitories, dining halls, clinics, classrooms, and large-scale construction camps. According to the International Organization for Standardization (ISO), modular building systems like the K type prefab house represent a growing global standard for sustainable and efficient construction.

K Type Prefab House Configurations

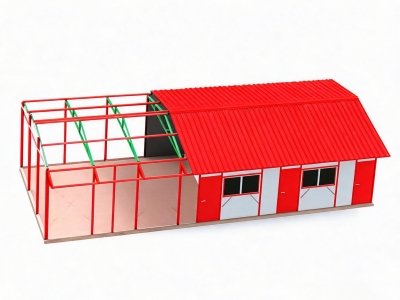

Type 1 – Single Storey   K Type Prefab House

The single storey K type prefab house is the most economical and widely used configuration. Ideal for construction site offices, worker accommodation, restaurants, activity rooms, and cultural spaces, it offers fast construction and can be fully disassembled and relocated when the project is complete. A cost-effective first choice for projects with limited budgets.

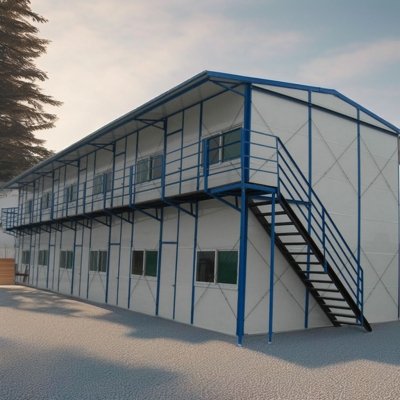

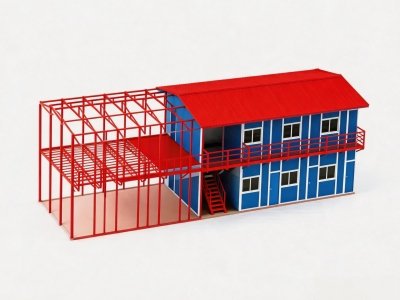

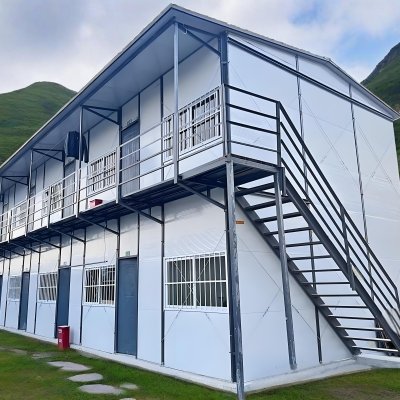

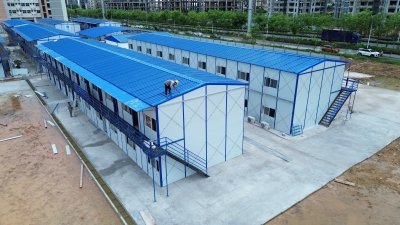

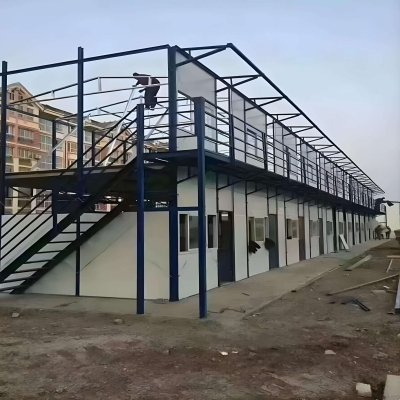

Type 2 – Double Storey K Type Prefab House

The double storey K type prefab house provides double the usable floor space on the same ground footprint — ideal for construction sites with limited land area. This configuration is widely used as a multifunctional complex combining office and accommodation spaces, maximizing efficiency without increasing the site footprint.

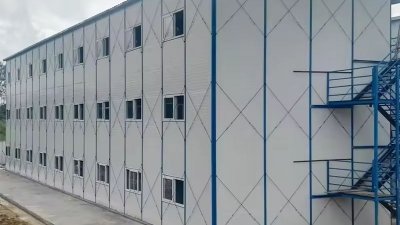

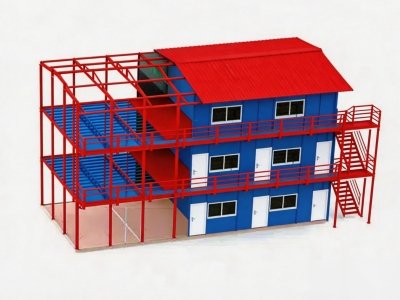

Type 3 – Three Storey K Type Prefab House

The three storey K type prefab house is engineered to maximize land utilization and accommodation capacity. Designed for labor-intensive projects, this configuration provides a centralized and efficient solution for large workforce camps, integrating dormitories, offices, dining, and recreational facilities in one compact complex.

Flexible customization Layout Design Customizable options

Category	Specification	Details

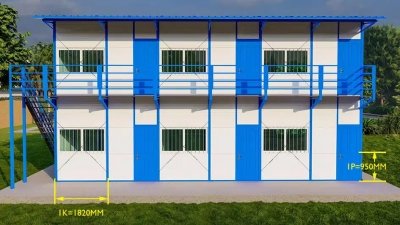

Dimensions	Module Unit	1K = 1820mm
	Width Options	2K (3.79m) / 3K (5.61m) / 4K (7.43m) / 5K (9.25m)
	Length	Extended combination according to K number (Customizable)
	Floors	1 - 3 Floors
Structural Performance	Floor Load Capacity	150 kg/㎡
	Wind Resistance	Grade 8-10
	Seismic Resistance	Grade 7
	Service Life	15+ Years

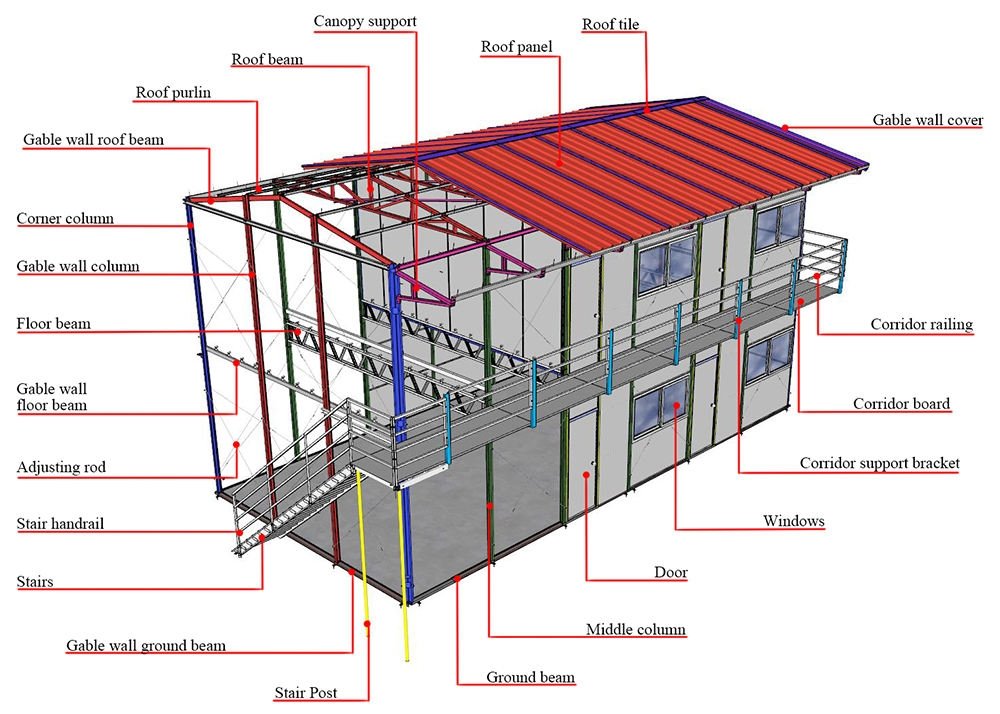

Materials	Main Structure	Light Steel Frame (C-beam, Galvanized Steel)
	Wall & Roof Panels	Rock Wool / EPS / PU Sandwich Panels
	Roof Type	Slope Roof with Galvanized Steel Tiles
Installation	Assembly Method	Bolt Connection - No Welding Required
	Installation Speed	20-30㎡ per person per day

Custom Sizes • Custom Layouts • Custom Interiors

E-TOM K type prefab houses feature an open interior layout that can be flexibly planned based on your actual project needs. Modular partitions using lightweight sandwich panels can be added to create separate functional zones including bedrooms, offices, meeting rooms, kitchens, and bathrooms.

With widths from 2K to 5K and customizable lengths, every K type prefab house layout can be tailored to your specific requirements — whether you need a compact single-room unit or a large multi-room complex.
